Milwaukee Announces 12V Brushless Driver Specs Before Upcoming Release

Milwaukee Announces 12V Brushless Driver Specs Before Upcoming Release

https://www.tool-rank.com/media/listing/photos/thumbnail/300x300s/a7/70/0b/1321_milwaukee-2453-22-1352099760.jpg
Chris   November 05, 2012
0   2
Milwaukee Announces 12V Brushless Driver Specs Before Upcoming Release

Milwaukee first made their new brushless M12 Fuel line of drills and impacts known during their press event way back in June. They then gave us the clue about the winter release date back in August. Now, with winter just around the corner, they have released the specs, and they have us wondering if you really need 18v tools anymore.

I have said before that 18-volt impact drivers are now producing torque that is more than the average user would need, and now it looks like we are seeing the Milwaukee M12 FUEL Brushless line benefit from the same technology advancements. M12 Fuel tools share many of the same features from their M18 FUEL brothers including the Powerstate brushless motor, Redlithium smart battery technology, and the Redlink Plus battery/tool communication system. All of these features combine to give the M12 Fuel impact drivers a whopping 1,200 in-lbs of torque and up to 2,600 RPM. The Drive Control feature found in the M18 Fuel Impacts also finds its way into the smaller M12 Fuel. This feature allows the users to select an impact setting to better match his current task. The M12 ¼-inch driver gets the benefit of 325 in-lbs of torque, and the drill/drivers offer up 350 in-lbs at 1,700 RPM. Milwaukee is also kicking things up a notch by being the first to offer ultra compact drills in a full ½-inch chuck.

Let us also not forget that Milwaukee has updated their M12 batteries to deliver 2.0 and 4.0 amps of power depending on the battery size, and the new M12 Fuel tools come with these new batteries as an option.

Milwaukee M12 Fuel

Impact Specifications

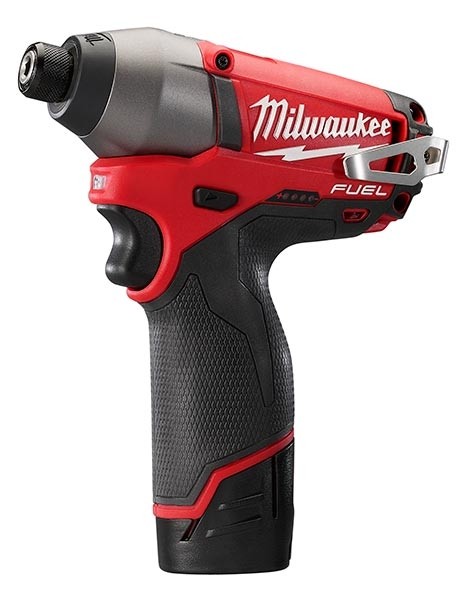

M12 FUEL ¼" Hex Impact Driver Kit (2453-22)

  • 2-Mode DRIVE CONTROL
  • Volts: 12V
  • Peak Torque: 1,200 in-lbs
  • Max RPM: 0-2,650 RPM
  • Max IPM: 0-3,550
  • Chuck Type: ¼" Hex Chuck with One-Handed Bit Insertion
  • Tool Length: 6"
  • Tool Weight (w/ battery):2.2 lbs
  • Includes: 2453 M12 FUEL ¼" Hex Impact Driver, (2) REDLITHIUM 2.0 Batteries, M12 Charger, Belt Clip and Carrying Case

M12 FUEL ¼" Hex Impact Driver (2453-20) Tool Only

  • Tool Weight :1.8 lbs
  • Includes: 2453 M12 FUEL ¼" Hex Impact Driver, Belt Clip

M12 FUEL ¼" Impact Wrench Kit (2452-22)

  • 2-Mode DRIVE CONTROL
  • Volts: 12V
  • Peak Torque: 500 in-lbs
  • Max RPM: 0-2,650 RPM
  • Max IPM: 0-4,000
  • Tool Length: 5-3/4"
  • Tool Weight (w/ battery):2.1 lbs
  • Includes: 2452 M12 FUEL ¼" Impact Wrench, (2) REDLITHIUM 2.0 Batteries, M12 Charger, Belt Clip and Carrying Case

M12 FUEL ¼" Impact Wrench (2452-20) Tool Only

  • Tool Weight :1.7 lbs
  • Includes: 2452 M12™ FUEL ¼" Impact Wrench, Belt Clip

M12 FUEL 3/8" Impact Wrench Kit (2454-22)

  • 2-Mode DRIVE CONTROL
  • Volts: 12V
  • Peak Torque: 1,400 in-lbs
  • Max RPM: 0-2,650
  • Max IPM: 0-3,500
  • Tool Length: 6-1/4""
  • Tool Weight (w/ battery):2.4 lbs
  • Includes: 2454 M12™ FUEL 3/8" Impact Wrench, (2) REDLITHIUM™ 2.0 Batteries, M12 Charger, Belt Clip and Carrying Case

M12 FUEL™ 3/8" Impact Wrench (2454-20) Tool Only

  • Tool Weight :2.0 lbs
  • Includes: 2454 M12™ FUEL 3/8" Impact Wrench, Belt Clip

Drill Specifications

M12 FUEL™ Driver Kit (2402-22)

  • Volts: 12V
  • Torque: 325 in-lbs
  • RPM: 0-1,700 RPM
  • Chuck Type: Quick-Change ¼" Chuck
  • Tool Length: 6.6"
  • Tool Weight (w/ battery):2.3 lbs
  • 2402 M12™ FUEL Driver, (2) REDLITHIUM™ 2.0 Batteries, M12 Charger, Belt Clip and Carrying Case

M12 FUEL™ Driver Kit (2402-20) Tool Only

  • Tool Weight :2.0 lbs
  • 2402 M12™ FUEL Driver

M12 FUEL™ ½" Drill/Driver Kit (2403-22)

  • Volts: 12V
  • Torque: 350 in-lbs
  • RPM: 0-1,700 RPM
  • Chuck Type: ½" Metal Ratcheting Chuck
  • Tool Length: 7.6"
  • Tool Weight (w/ battery):2.9 lbs
  • 2403 M12 FUEL ½" Drill/Driver, (1) REDLITHIUM 2.0 Battery, (1) REDLITHIUM XC4.0 Battery, M12 Charger, Belt Clip and Carrying Case

M12 FUEL ½" Drill/Driver Kit (2403-20) Tool Only

  • Tool Weight :2.5 lbs
  • 2403 M12™ FUEL ½" Drill/Driver

M12 FUEL ½" Hammer Drill/Driver Kit (2404-22)

  • Volts: 12V
  • Torque: 350 in-lbs
  • RPM: 0-1,700 RPM
  • Chuck Type: ½" Metal Ratcheting Chuck
  • Tool Length: 7.6"
  • Tool Weight (w/ battery):2.9 lbs
  • 2404 M12 FUEL ½" Hammer Drill/Driver, (1) REDLITHIUM 2.0 Battery, (1) REDLITHIUM XC4.0 Battery, M12 Charger, Belt Clip and Carrying Case

M12 FUEL ½" Hammer Drill/Driver Kit (2404-20) Tool Only

  • Tool Weight :2.5 lbs
  • 2404 M12™ FUEL ½" Hammer Drill/Driver
